Intracranial atherosclerosis is one of the most common causes of stroke worldwide. It accounts for at least 10% of all strokes in the United States and as much as 67% in countries with predominantly Asian, Hispanic and Black populations. The prognosis for ICAD-caused strokes is worse than for strokes with other etiologies, with an annual rate of recurrent stroke and death of 15% despite intensive medical management, and as high as 35% in certain populations. Recent randomized controlled clinical trials have shown that angioplasty with stenting and bypass surgery fail to improve outcomes in patients with ICAD.

The lab has extensive capability with extensive variability of clinical and imaging patient data that allows interpretation of molecular findings from a clinically applicable perspective. We have conducted extensive analyses on the angiogenic profiles and circulating cytokines of patients with ICAD undergoing medical management and undergoing surgical interventions for revascularization. The profiles that failed medical management are characterized by a predominance of the antiangiogenic factors endostatin, angiostatin and VEGFR1, as well as other growth factors previously identified with high risk of stroke, such as hepatocyte growth factor (HGF).

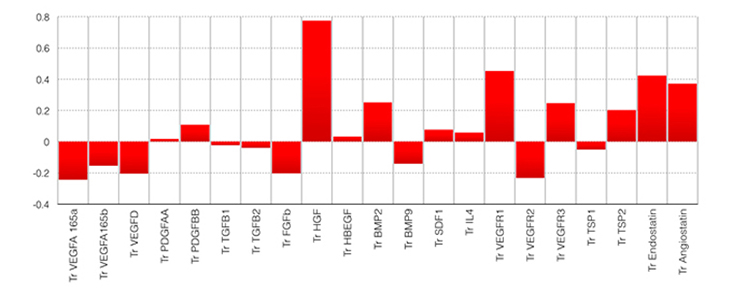

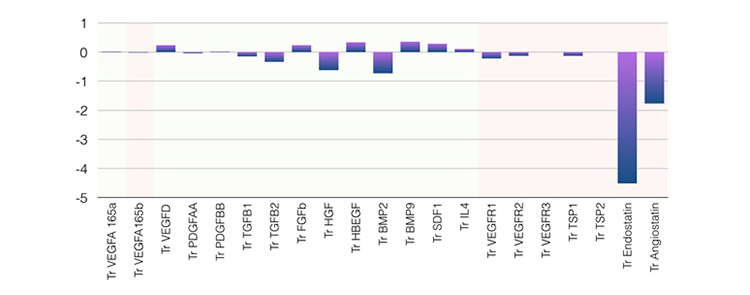

The figures below schematically represent the components of the eigenvector principal component profile associated with failure of medical management and poor neovascularization after synangiosis surgery.

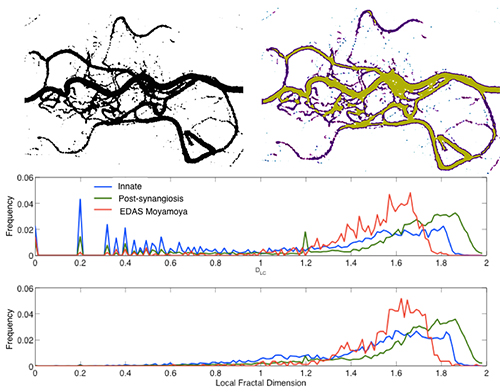

We have also conducted detailed analysis of the neovascularization of patients treated with synangiosis surgery and characterized the patterns of collateral formation in comparison with native collaterals. Interestingly, our evaluations using branching and tortuosity indexes and local connected fractal dimension show that the vessels formed after encephaladuroarteriosynangiosis (EDAS) follow branching patterns and tortuosity that resemble mature cerebral vessels, contrary to the high tortuosity and low branching patterns of native collaterals (fig. 3)

The clinical application of this work has led to the establishment of EDAS as a promising form of indirect revascularization by synangiosis, in which branches of the external carotid artery (ECA) are rerouted intracranially and placed in close contact with the cortical branches of the middle cerebral artery branches, without direct anastomosis. We have been pioneers on this technique and have proven the application of EDAS in adults with moyamoya disease. We recently conducted a National Institutes of Health/National Institute of Neurological Disorders and Stroke-sponsored Phase II clinical trial of EDAS in patients with ICAD. Our study demonstrated a significant reduction in the rates of recurrent strokes and death at one year, as well as an increase in angiographic neovascularization from the ECA branches. EDAS is a promising surgical technique that provides evidence of the safety and effectiveness, supporting further efficacy testing in a Phase III randomized clinical trial, which is currently being evaluated by the NIH for a multicenter nationwide clinical trial of EDAS in ICAD.

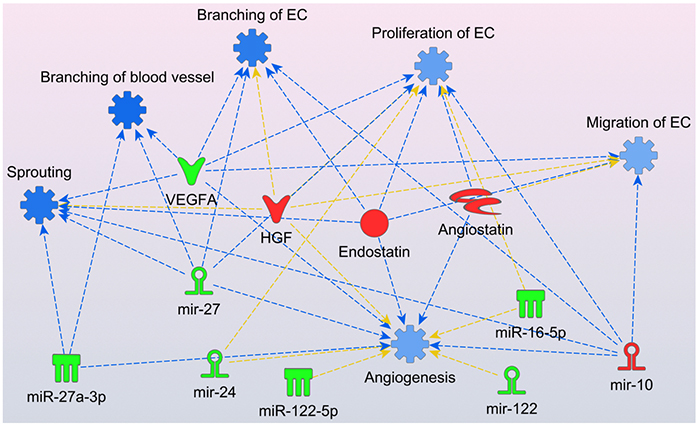

Exosomes are membrane microvesicles that function as important intra and extracellular communication mediators regulating the exchange of proteins and genetic material (i.e., miRNAs). Thus, the Gonzalez Lab has isolated exosomes from the plasma of ICAD patients and analyzed the differential expression of exosomal miRNAs. After reducing the dimensionality of the data using principal component analysis (PCA), we found statistically significant associations of angiogenesis pathways with eight miRNA and four angiogenic factors that were differently expressed between the ICAD patients responsive to and non-responsive to the intensive medical management. Figure 4 shows that the exosomal miRNA and angiogenic factors levels observed in ICAD patients that were non-responder to medical management (red=increased measurement, green=decreased measurement) had a consistent net result of inhibition of angiogenesis (blue=inhibition, orange=activation) affecting the mechanisms of vessel sprouting, branching and proliferation.

Having identified candidate angiogenic factors in the treatment of ICAD, we have developed a model of cerebral ischemia in mice by ligation of the distal middle cerebral artery (MCA) (Figure 5).

In the model of synangiosis with MCA ischemia, the Gonzalez Lab has demonstrated increased vascular density in the operative side compared with the control side, as shown in Figure 6. On the left panel, endothelial cells were marked with CD31. The surgical side exhibits a conglomerate of increased vascular density at the level of the muscle-brain interphase (red line). Co-staining of endothelial cell marker CD31 (red) and nuclear proliferation marker Ki67 (green) showed significant differences between surgical and control sides (73.0 ± 8.3% vs. 33.6 ± 10.9%, p=0.04), indicating new vessel growth. (We need to add to recent results from the latest experiments with CD31-BrDU co-localization). Structural analysis of the configuration of these new vessels reviewed significantly increased parallelism and reduced branching compared with the native vessels of the control side (Figure 7), representing the morphological features of neovascularization after ischemia-revascularization in the mouse model.

Current efforts in the Gonzalez Laboratory are focused on the evaluation of several strategies to stimulate angiogenesis in the setting of cerebral ischemia, in particular through the development of local agents to facilitate vessel formation after synangiosis surgery.
